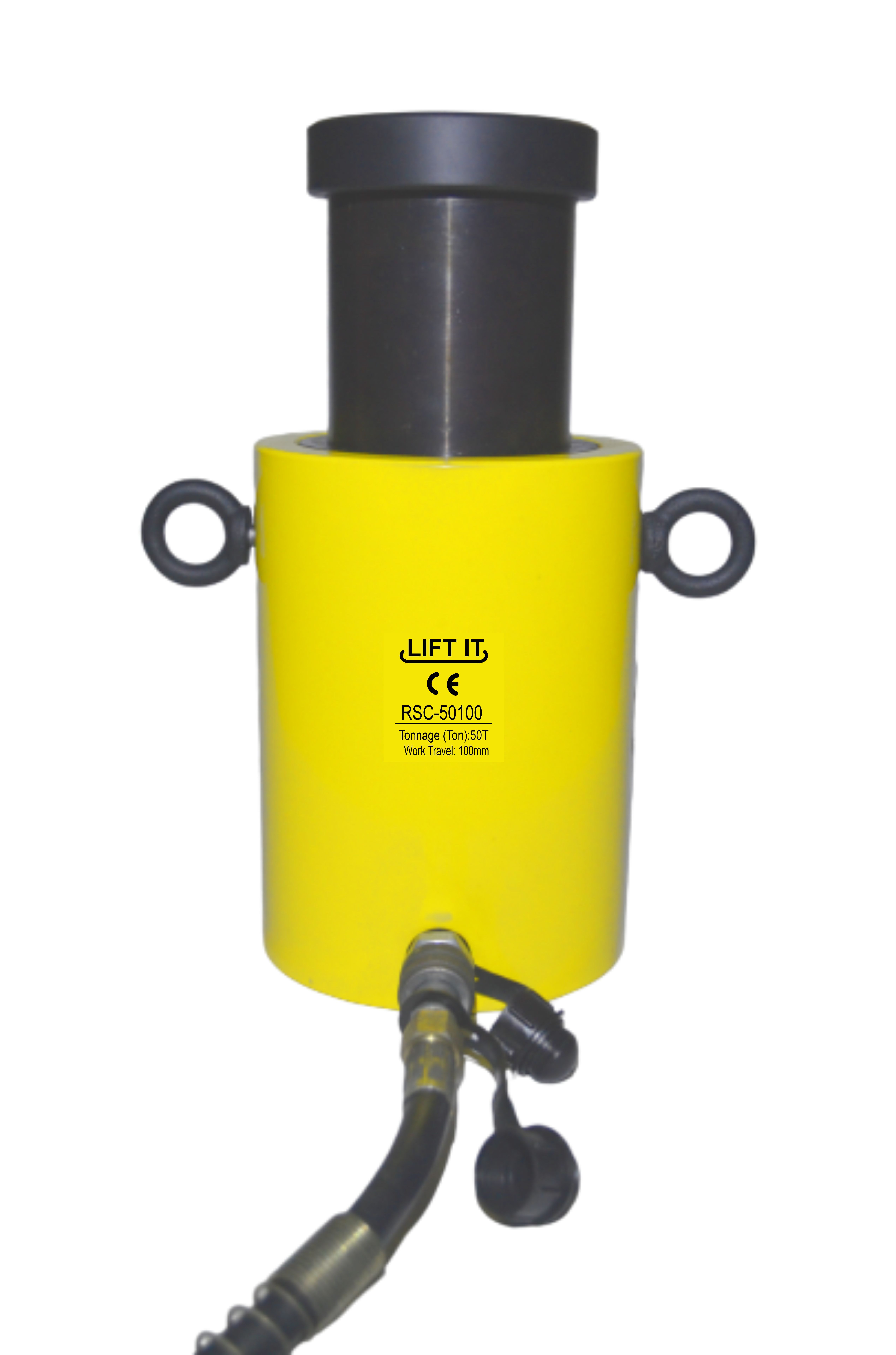

LIFTIT Single Acting Hydraulic Jack RSC 50100

Product Description

LIFTIT Single Acting Hydraulic Jack RSC 50100

Load Lifting Capacity - 50 tons

Stroke Length - 100mm

Oil Capacity - 0.7 Ltr

Collapsed Height - 213 mm

Extended Height - 313 mm

Outside Dia - 127 mm

Weight - 18 Kg

Spring return enables fast plunger retraction. Surface coating resists corrosion, extends jack life, Quick Release coupling and dust cap are included on all models. There is a stop ring for piston blow out protection. Maximum sized springs speed piston return and also increases spring life. Used for long strokes Vertical & Horizontal application. The surface of the principal axis is finished with chrome plate to protect the use of longevity of the product. Hardy underlay to avoid axis break when it is overloading. Stopping ring- To protect the cylinder when the stroke gets to the top, absorb heaviness in the other side. Spring- Provide the capability of quick flexing. Cylinder wall with principal axis- They can avoid eroding and less friction by chrome plate. O-ring:- Great effect for seeking and hold longevity. Brass ring - Use high quality of brass to joint, to protect the status of overloading and absorb heaviness on the other side.
